Setup Instructions
Step 1

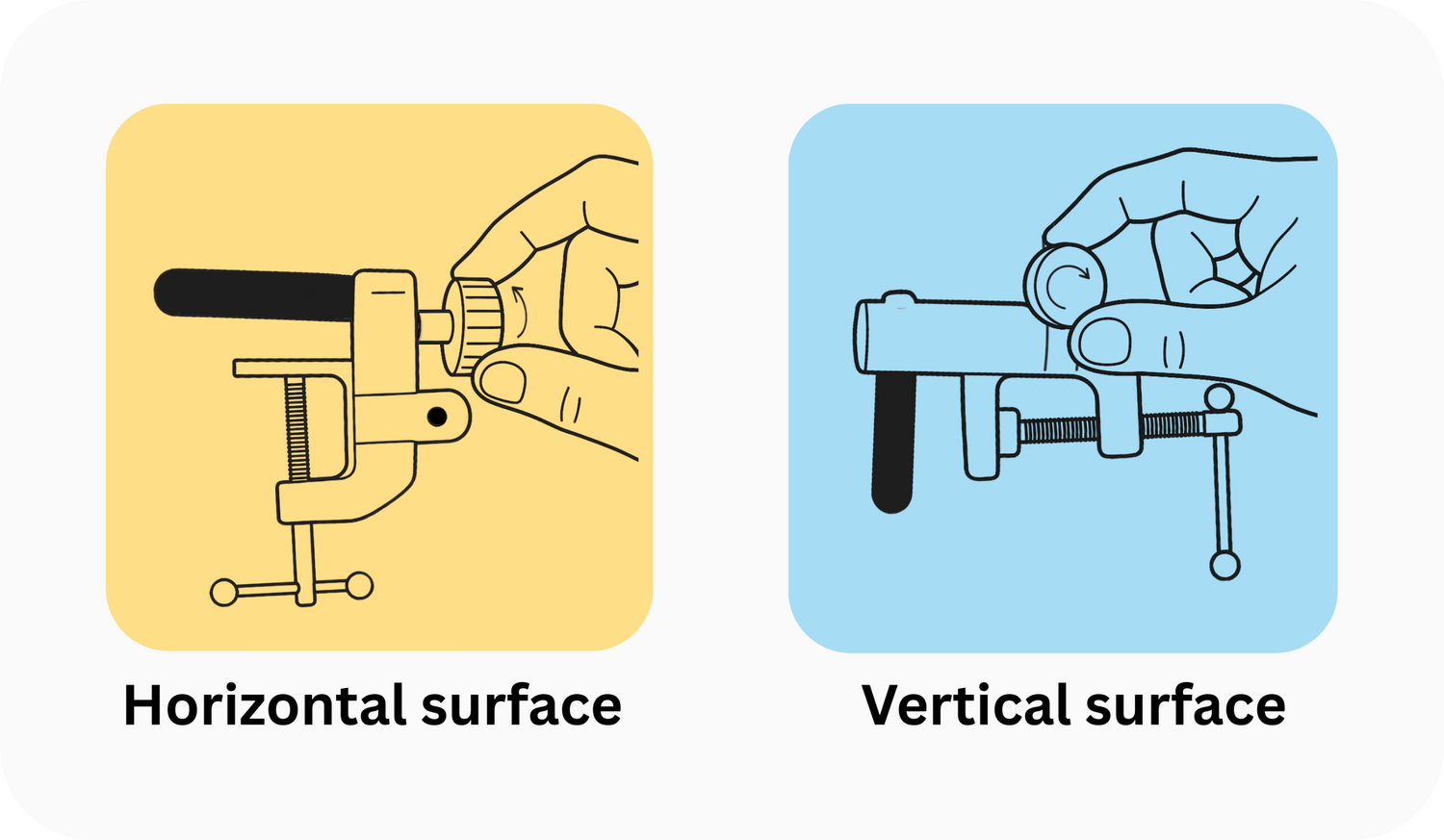

Decide mounting orientation
The clamp can be attached to a flat surface (like a tabletop) or on a vertical edge.
Insert the arm retaining screw into clamp through the appropriate mounting hole based on your setup. Leave it slightly loose—you'll tighten it after the arm is in place.
Step 2

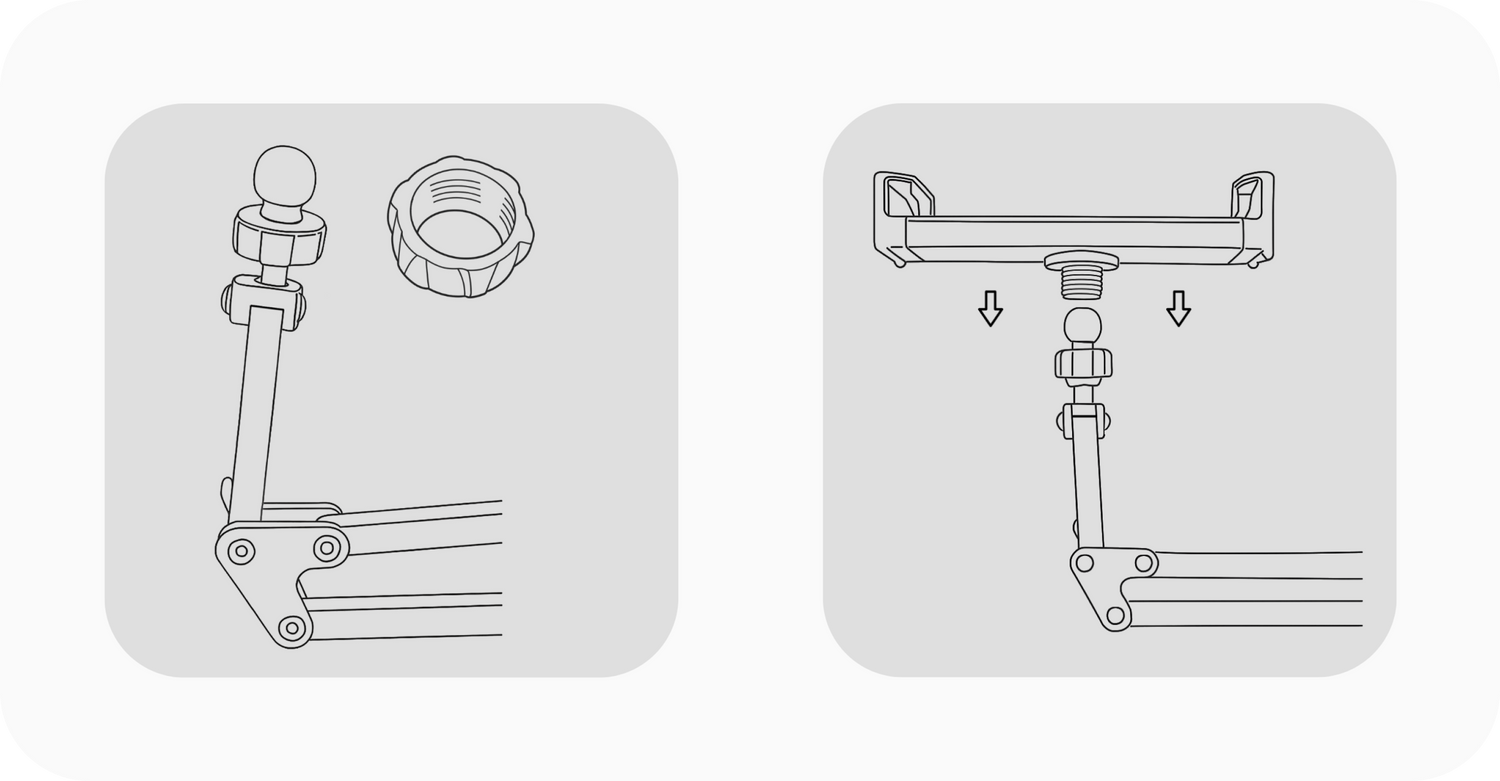

Attach screen holder
Slide on the Nut
Take the plastic retaining nut and slide it over the ball end of the baby arm. Make sure the threads are facing outward—away from the arm and toward the ball.
Snap It In Place
Now press the screen holder firmly onto the ball end until it snaps into place.
Secure It
Twist the nut onto the threaded end of the screen holder to hold everything together. Don’t over-tighten—just enough to keep it snug and secure.
Step 3
Attach Arm
Final Step

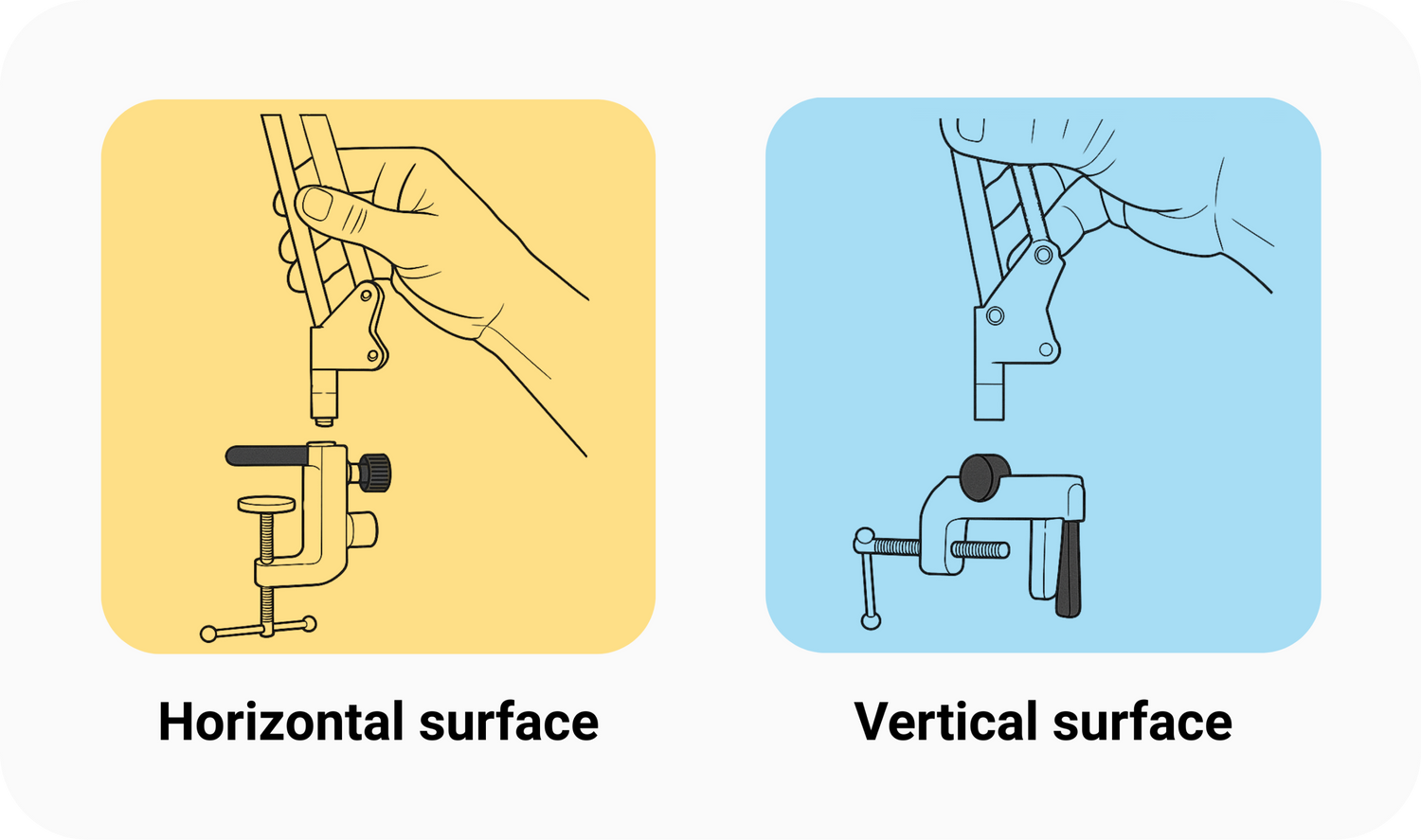

Slide the arm into the clamp’s receiver for your chosen position—horizontal or vertical. Make sure it’s fully seated at the bottom. If it doesn’t go all the way in, loosen the screw a bit, then push it down and tighten.
